Je Pistons Ultra Series Piston Kit

• Aligned Grain Flow Technology - In-house forging has allowed JE to develop proprietary forging technology that directs the grain flow of the aluminum to flow around critical areas of the piston, increasing strength
• Lateral gas ports channel combustion gases to the back of the top ring groove adding pressure behind the compression ring to keep it pushed against the cylinder, providing improved and more consistent ring seal, critical in boosted applications
• Ultra-thick ring lands aid in maintaining ring stability in forced induction and high-horsepower N/A engines, contributing to consistent ring seal and consistent power
• Thermal barrier crown ceramic coating on the piston crown greatly reduces heat transfer into the piston material, decreasing fatigue and improving longevity
• Proprietary, moly-based dry film skirt coating is applied in-house and reduces operating friction for better wear resistance
• Accumulator groove provides additional volume to trap unwanted gases below the top ring to keep pressure low and ring seal and performance high
• Two oil channels fed into the pin bore maintain proper lubrication to improve wrist pin and pin bore wear resistance

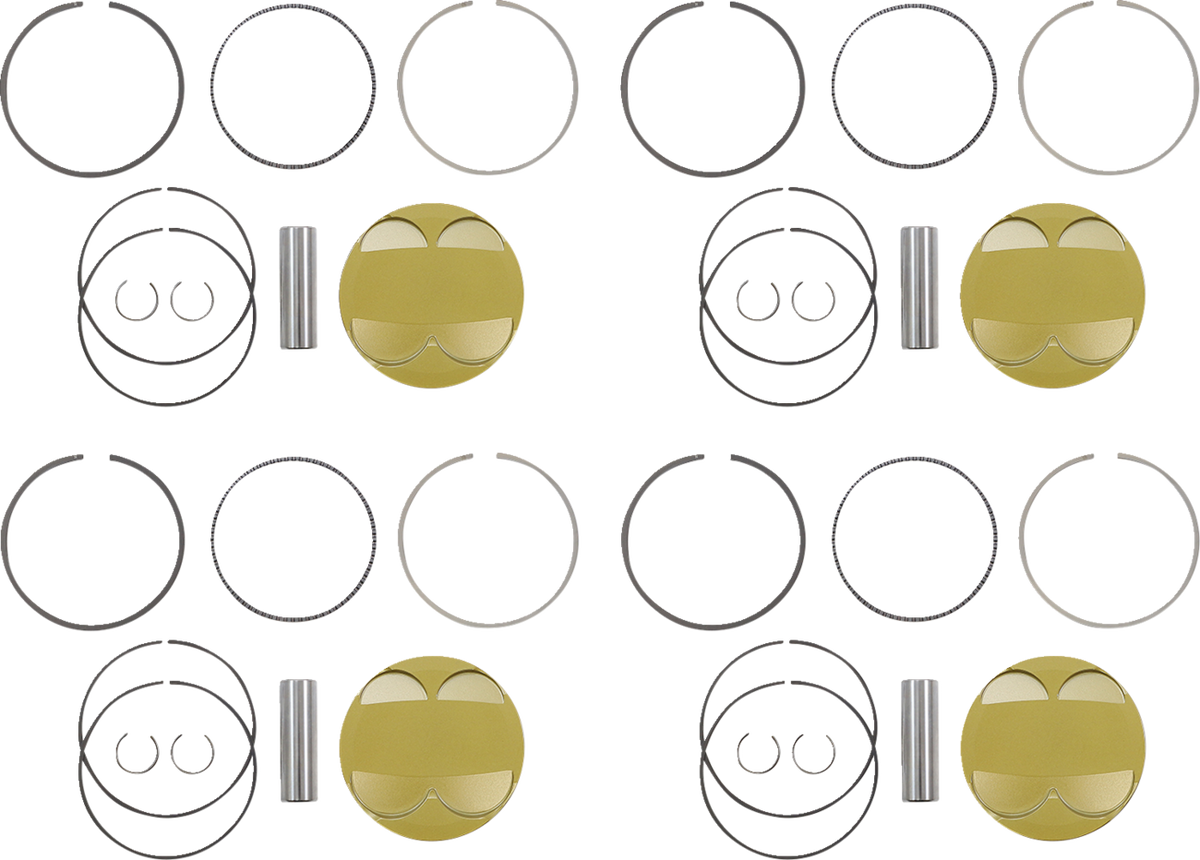

• Complete kit includes all necessary pistons, rings, wrist pins, and wire locks under one part number
• Upgraded 9310 wrist pins are stronger and thicker, designed to withstand additional loads of forced

Specifications

• Riding Style: Street
• Model: Ultra Series
• Skirt Coating: Moly Coated
• Bore - Oversize: +3,00 mm
• Bore Size: 84.00 mm
• Compression Ratio: 13.5:1
• Displacement: 1441 cc
• Type: Forged Side Relief Design

Fits

• Suzuki GSX1300R Hayabusa: 1999-2019

Manufacturer Part Number: 379443

Brand new. Free shipping on every order.

Please check the fitment for your vehicle before ordering.
